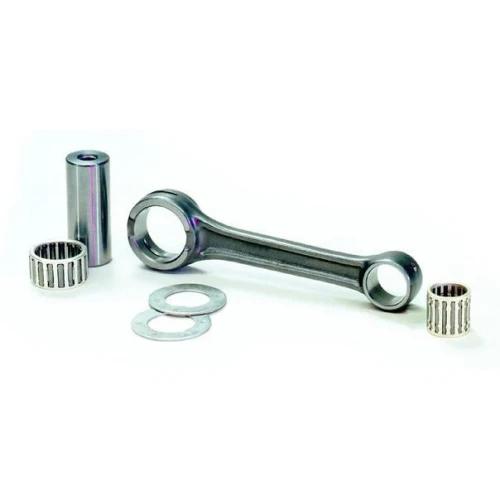

Rådekit KTM
- 2006 - 2007 KTM 250 EXC-F BIKE
- 2005 - 2012 KTM 250 SX-F BIKE
- 2006 - 2008 KTM 250 SXS-F BIKE
- 2007 - 2011 KTM 250 XC-F BIKE
- 2008 - 2013 KTM 250 XCF-W BIKE
OE Part Number(s):
- KTM: 77030015144
- KTM: 77030015244
Technical Specifications:
- Big End Bearing (mm): 30x38x17.7
- Big End Bore (mm): 38.00
- Big End Width (mm): 17.90 Center To Center (mm): 98.00
- Pin Diameter (mm): 30.00
- Pin Length (mm): 53.70
- Small End Bearing (mm):
- Bushing Small End Bore (mm): 16.00
- Small End Width (mm): 17.90
- Washer Thickness (mm): NA
